Information

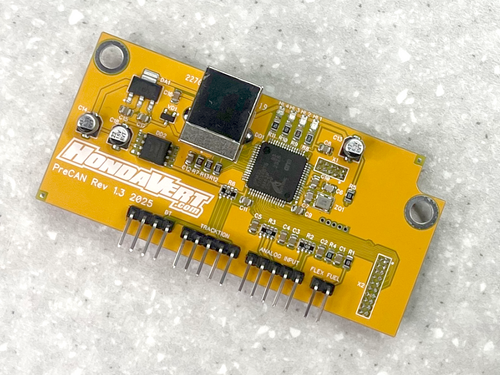

Daughterboard for Honda K-Series ECU – Expand your ECU Capabilities.

Live Engine Tuning.
Live Sensors Logging.
Boost Features (boost tables, boost control, custom MAP sensor).
Engine Protection from lean AFR, overboost and overheat.
Launch Control with anti-lag.
Nitrous or Methanol injection.
MIL ShiftLight.
On board datalogging memory (up to 2hr of datalogging).
and much more...

Fully compatible with all vehicle systems, ABS, Climate Control, etc.

Supported K-series ECU boards

The following ECU revisions based on the Renesas SH7058 MCU are supported.

001J3-L5001-00

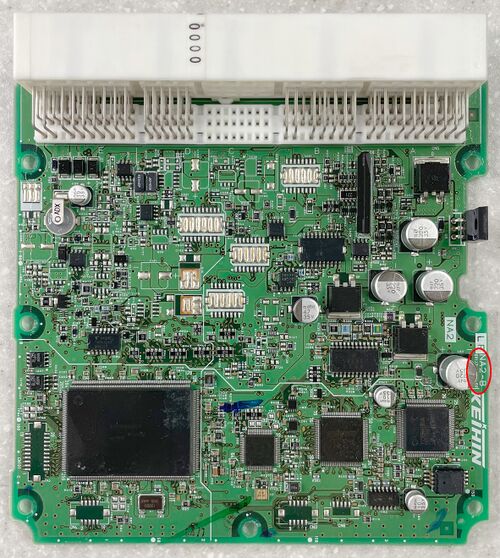

Board version is marked on the ECU PCB (see circled area in the picture)

Factory-equipped in the following models

05-06 Acura RSX Base
05-06 Acura RSX TypeS
05-07 Honda Accord USA Spec. (CM4-CM8)
05-06 Honda Element

Compatible with vehicles after ECU replacement

03-07 Honda Accord EuroR
03-04 Honda Accord USA Spec. (CM4-CM8)
03-07 Honda Accord JDM Spec. (CL7-CL9)
03-07 Acura TSX I
03-04 Honda Element (MT Only)
Various EG/EK/DC K-Swapped Vehicles

The OEM ECUs in these vehicles are not compatible with the PreCAN daughterboard.
Installation is only possible by replacing the original ECU with one from the vehicles listed in the previous section.

Supported Software

All HondaVert preCAN devices compatible with KTuner 1.0.11.2.
Software downloaded from other sites not compatible with HondaVert preCAN devices.

Guides

Hardware Installation

Step by Step installation Guide

Board LEDs Meaning

Troubleshooting using DIAG LEDs

Sign In or Register

Create KTuner Account or Sign In

Registering PreCAN Unit

Hardware Registration & ECU Locking

Tech Details

ECU Pinout

Detailed ECU Connectors Pinout

Throttle Body Variants

Mechanical vs Electronic Throttle Bodies

Download

False virus detections may occur.
If you have trouble downloading, temporarily disable your antivirus and Windows Defender.

Extract with WinRAR or 7-Zip. Password for Archive: 1234

KTuner 1.0.11.2

Get the latest Build Securely
