Information

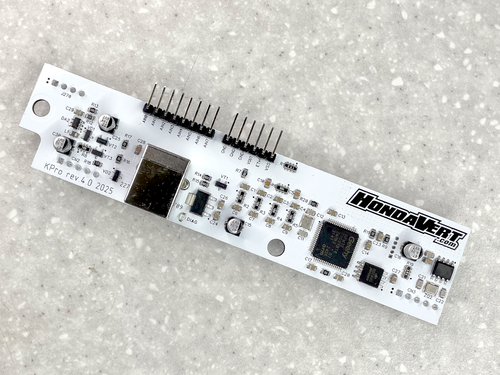

Daughterboard for Honda K-Series ECU – Expand your ECU Capabilities.
- Live Engine Tuning.
- Live Sensors Logging.
- Boost Features (boost tables, boost control, custom MAP sensor).
- Engine Protection from lean AFR, overboost and overheat.
- Launch Control with anti-lag.
- Nitrous or Methanol injection.
- MIL ShiftLight.
- Programmable Outputs.
- and much more...
Fully compatible with all vehicle systems, ABS, Climate Control, etc.
Advanced Features
Available exclusively for KPro Rev.4 boards with an active Advanced Features subscription.
- Bluetooth
- Onboard Datalog (100Hz)
- FlexFuel Support & Ethanol Sensor Input
- 8 Analog Inputs
- External Wideband Input
- Alternate Speed Sensor Input
- Dashboard Speed Output (EG/EK/DC K Swap)
- Live Autotune Tables
- Target Lambda Tables
- Advanced Engine Protection
Read more about Advanced Features...
Supported K-series ECU boards
The following ECU revisions based on the OKI 66Q592 MCU are supported.
- 001DD-L5005-A0
- 001DD-L5003-00

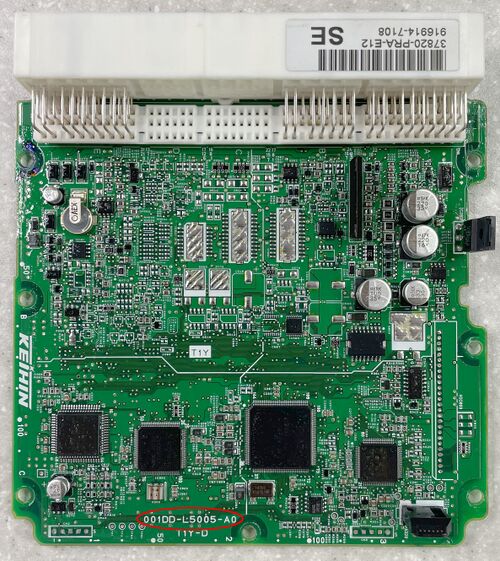

Board version is marked on the ECU PCB (see circled area in the picture)
Factory-equipped in the following models
- 02-05 Honda Civic Si
- 01-05 Honda Civic TypeR
- 01-06 Honda Integra DC5
- 02-06 Honda Integra TypeR
- 02-04 Acura RSX Base
- 02-04 Acura RSX TypeS
Compatible with vehicles after ECU replacement
- 99-03 Honda S2000 AP1
- 02-05 Honda Civic D17 MT
- Various EG/EK/DC K-Swapped Vehicles
The OEM ECUs in these vehicles are not compatible with the KPro daughterboard.
Installation is only possible by replacing the original ECU with one from the vehicles listed in the previous section.

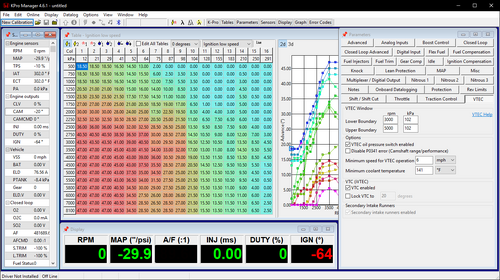

Supported Software
- KPro Manager
Guides
Step by Step installation Guide
Connection Guide and Compatible Applications
Troubleshooting using DIAG LEDs
Tech Details
Detailed ECU Connectors Pinout
PRA vs PRB O2 Sensor Differences and Wiring Diagrams
Download
Get Latest KPro Manager + Service Utility Securely
